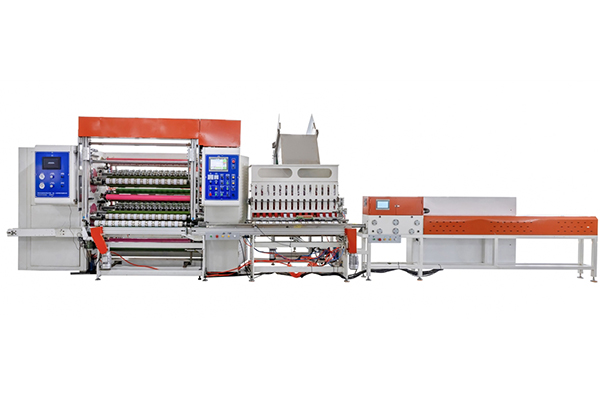

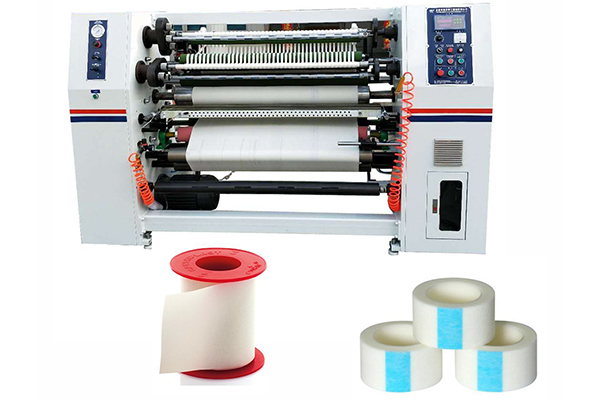

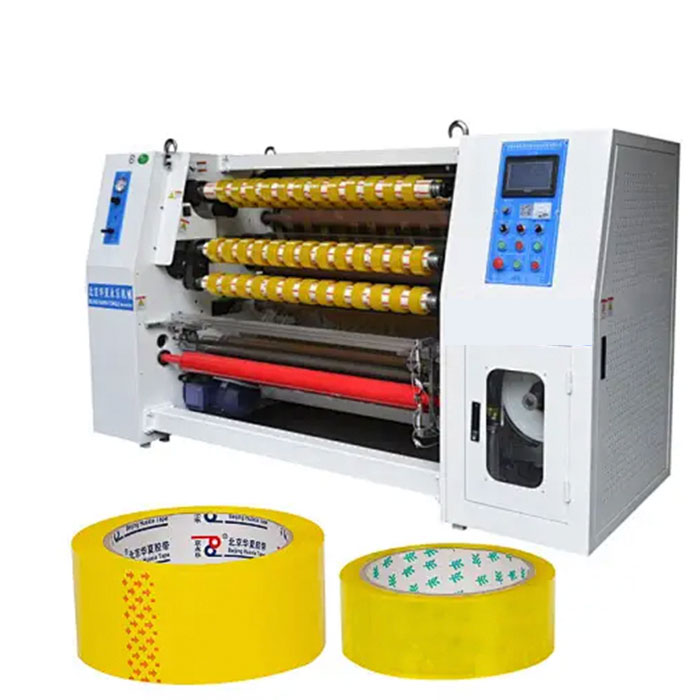

BOPP Tape Slitting Rewinding Machine Application
This machine used for slitting many kinds of BOPP sealing tape, fiberglass tape, adhesive paper and various adhesive product. The machine can slit big bopp tape roll to small bopp tape roll. Finish product can used for encapsulate various items such as gifts, food, handicrafts, etc.
BOPP Tape Jumbo Roll Slitting Machine Feature

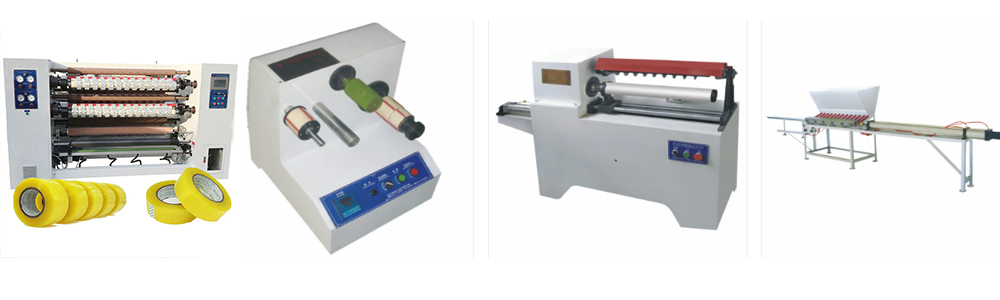

BOPP tape jumbo roll slitting machine automatic adhesive cello scotch tape making machine making various specifications of finished adhesive tapes from jumbo roll which has been coated with glue, together with other three machines, core cutting machine, core loading machine and mini rewinding machine.
1.Core Cutting Machine: cutting long paper core to small tape core size
2.Core Loading Machine: take off tapes from rewinding shafrts same time put paper
3.Mini Rewinding Machine: to get poorty tension tapes to good one &wore as length cuonter
BOPP Tape Slitting Rewinding Machine Technical Data
Type | RW1300 |
EFFECTIVE WIDTH | 1300MM |
UNWIND DIAMETER | MAX. 600MM |
REWIND DIAMETER | MAX. 150MM |
SLITTING WIDTH | MIN. 10MM |
PAPER CORE I.D. | 3" |
MACHINE SPEED | MAX. 180M/MIN |
POWER SOURCE | 380V 50HZ 3PHASE |
AIR SOURCE | 5KG (PREPARED BY USER) |
BOPP Tape Slitting Rewinding Machine Accessories
CORE LOADING MACHINE | RW-103 WORKING WIDTH: 1300MM I.D. OF PAPER CORE: 3" AIR COMPRESSOR: 5KG (PREPARED BY USER) |
CORE CUTTING MACHINE | RW-203 MAX. CUTTING WIDTH: 500MM MIN. CUTTING WIDTH: 12MM I.D. OF PAPER CORE: 3" THICKNESS OF PAPER CORE: MAX. 5MM AIR COMPRESSOR: 5KG (PREPARED BY USER) MOTOR: 2HP PE TUBE CIRCULAR BLADE: Φ76*25.4MM*1.2T |
MINI REWINDING MACHINE | RW-200 MAX. UNWIND DIAMETER: 300MM |
ALUMINIUM MOULD | MAX. UNWIND WIDTH: 100MM |
Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

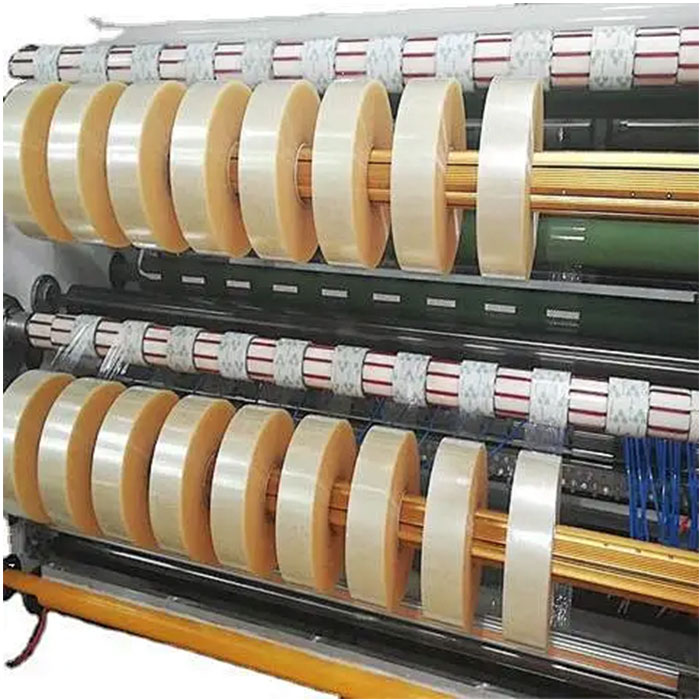

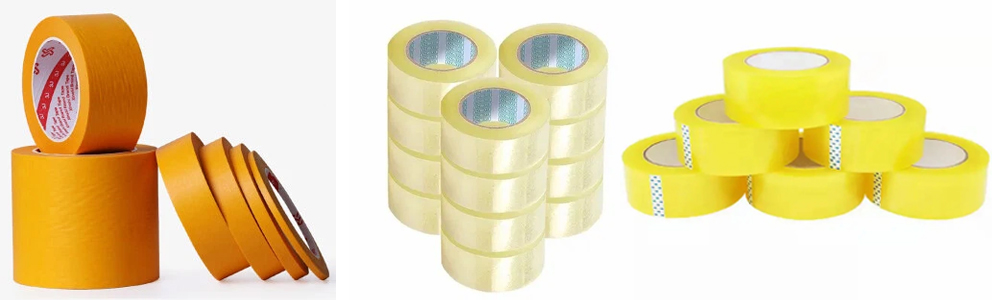

Finish Sample

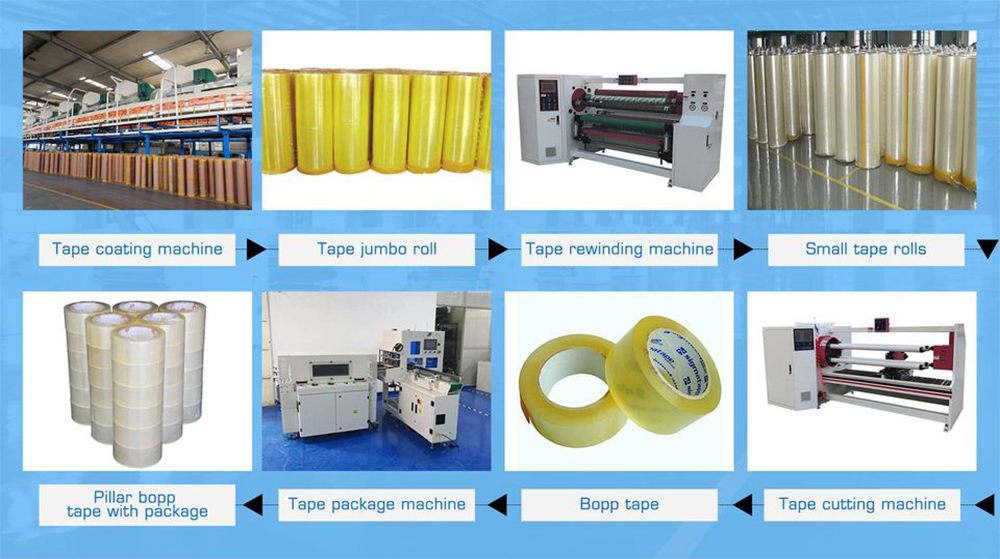

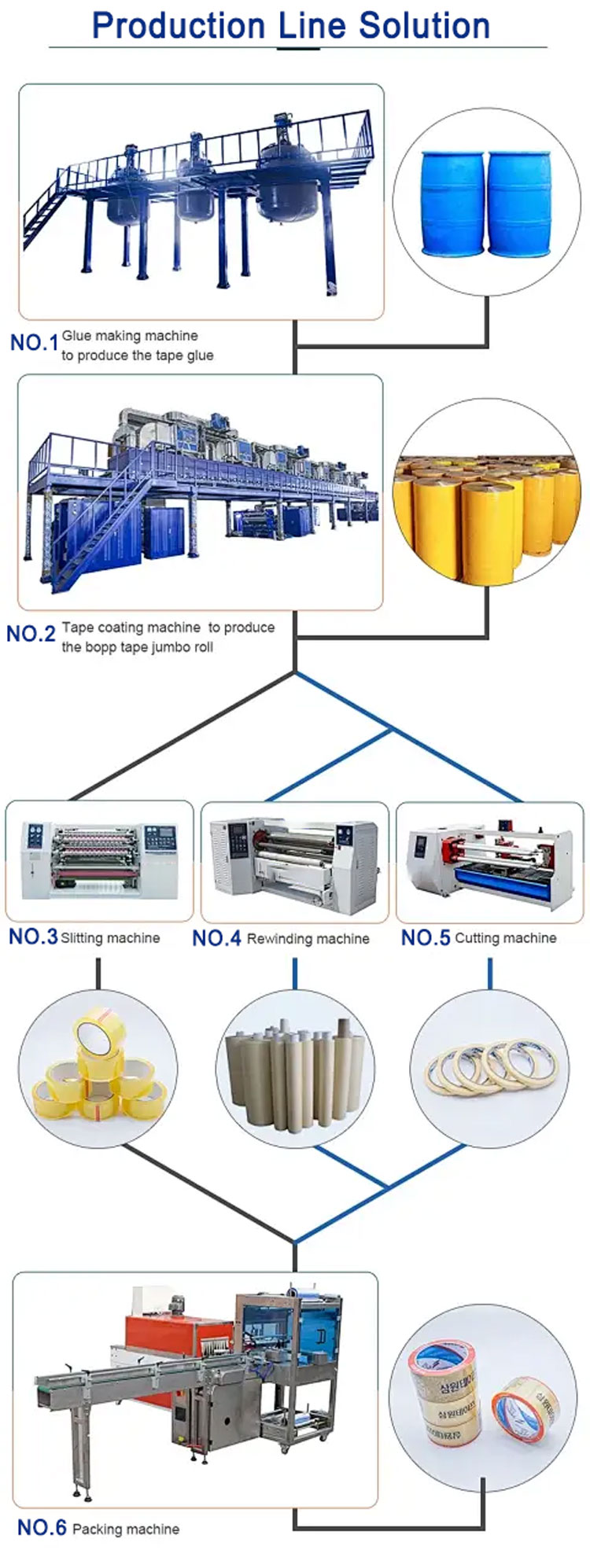

Product Production Process
